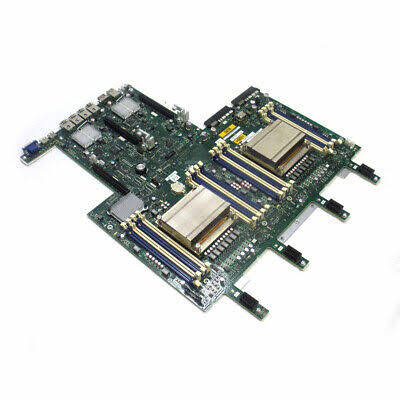

Sun Oracle 7048712 X3-2 System Board Assembly – X4170 M3

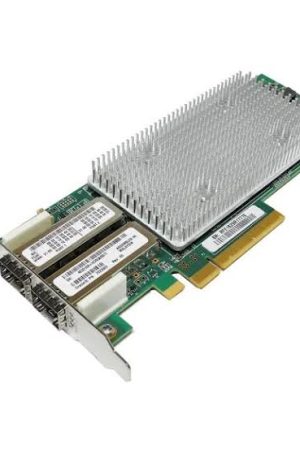

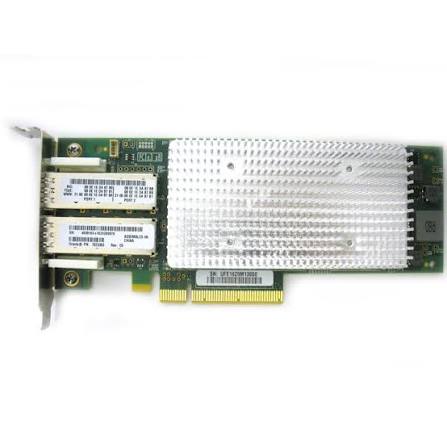

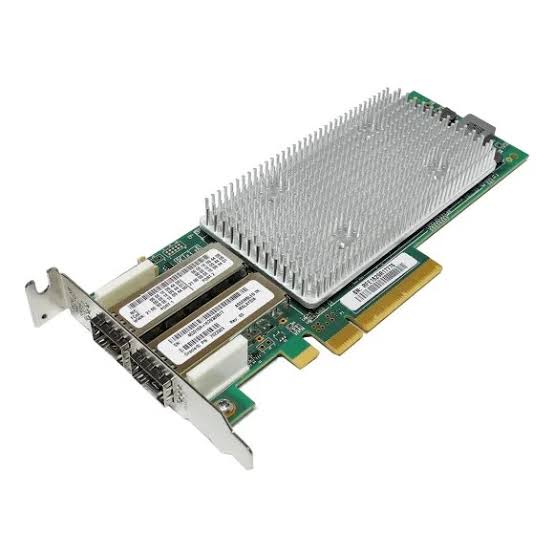

QLogic 7023303 Dual-Port 16Gb Fibre Channel / 10Gb FCoE Host Bus Adapter
QLogic 7023303 Dual-Port 16Gb Fibre Channel / 10Gb FCoE Host Bus Adapter
The QLogic 7023303 is a high-performance dual-port Host Bus Adapter designed for enterprise SAN and data-center environments. It delivers up to 16Gbps Fibre Channel or 10Gbps Fibre Channel over Ethernet (FCoE) connectivity through two SFP+ ports and a PCI Express x8 host interface, providing flexible, high-bandwidth server-to-storage connectivity.
Description
The QLogic 7023303 is a dual-port enterprise Host Bus Adapter (HBA) designed to provide high-speed connectivity between compatible servers and storage-area-network infrastructure. Supporting 16Gb Fibre Channel (FC) and 10Gb Fibre Channel over Ethernet (FCoE), this adapter is designed for organizations that require reliable, high-bandwidth storage connectivity in enterprise and data-center environments.
With two SFP+ ports and a PCI Express x8 host interface, the 7023303 provides flexible connectivity for Fibre Channel SANs and converged Ethernet/FCoE environments. Its dual-port architecture is also well suited to configurations requiring multiple storage paths or redundant SAN connectivity.
Key Features
- QLogic 7023303 Host Bus Adapter
- Dual-port architecture
- Up to 16Gbps Fibre Channel connectivity
- Up to 10Gbps Fibre Channel over Ethernet (FCoE)
- PCI Express x8 host interface
- Two SFP+ ports
- Designed for enterprise SAN environments
- Supports high-speed server-to-storage connectivity
- Suitable for redundant storage-network configurations
- Designed for data-center and enterprise infrastructure
High-Performance Fibre Channel Connectivity
The QLogic 7023303 provides high-speed Fibre Channel connectivity for enterprise storage environments. With support for Fibre Channel speeds up to 16Gbps, it is suitable for applications where high storage throughput and efficient server-to-SAN communication are important.
The adapter can be deployed in Fibre Channel SAN environments to connect compatible servers with Fibre Channel switches, storage arrays, and other SAN infrastructure.
10Gb FCoE Capability
In addition to traditional Fibre Channel, the 7023303 supports 10Gbps Fibre Channel over Ethernet (FCoE).
FCoE allows Fibre Channel storage traffic to be transported over Ethernet infrastructure, making the adapter suitable for converged data-center architectures. This provides organizations with greater flexibility when designing server, network, and storage connectivity.
The ability to operate in Fibre Channel or FCoE environments makes the adapter particularly useful for organizations maintaining different generations or types of enterprise storage infrastructure.
Dual-Port Design
The two-port configuration provides additional connectivity flexibility compared with single-port adapters.
Each port can be connected to compatible SAN or converged-network infrastructure. In appropriately designed environments, the dual-port architecture can also be used to establish redundant storage paths, helping improve availability and resilience.
This makes the 7023303 suitable for enterprise applications where continuous access to storage resources is important.
PCI Express x8 Interface
The adapter connects to a compatible server through a PCI Express x8 interface, providing the host-side bandwidth required for high-speed Fibre Channel and FCoE communication.
Before installation, customers should verify that the target server has a compatible PCIe slot and supports the required HBA configuration, firmware, drivers, and operating system.
SFP+ Connectivity
The QLogic 7023303 uses two SFP+ ports for its external connections.
The appropriate Fibre Channel or FCoE-compatible optical or copper transceiver and cabling should be selected according to the intended deployment. Transceivers may be sold separately depending on the specific product configuration.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | QLogic |
| Part Number | 7023303 |
| Product Type | Host Bus Adapter |
| Adapter Type | Fibre Channel / FCoE HBA |
| Ports | 2 |
| Port Interface | SFP+ |
| Maximum Fibre Channel Speed | 16Gbps |
| Maximum FCoE Speed | 10Gbps |
| Host Interface | PCI Express x8 |
| Primary Application | Enterprise SAN / Storage Networking |
| Deployment | Server-to-storage connectivity |
| Architecture | Dual Port |
Enterprise Storage Applications
The QLogic 7023303 is suitable for a wide range of enterprise infrastructure applications, including:
- Storage Area Networks (SAN)
- Enterprise data centers
- Fibre Channel storage arrays
- FCoE converged networks
- Virtualized server environments
- Database servers
- High-performance computing environments
- Storage and backup infrastructure
- Mission-critical applications
- Server and storage upgrades
- Replacement of compatible QLogic HBAs
Benefits
High-Speed Storage Access
Provides up to 16Gbps Fibre Channel connectivity for high-throughput storage applications.
Flexible Connectivity
Supports both Fibre Channel and 10Gbps FCoE deployment models, providing flexibility for different storage-network architectures.
Dual-Port Architecture
Two independent ports provide additional connectivity options and can support redundant storage paths in appropriately configured environments.
Enterprise-Class Design
Designed for use in demanding server, SAN, and data-center environments where dependable storage connectivity is essential.
Efficient Server-to-Storage Communication
A PCI Express x8 host connection provides a high-bandwidth interface between the server and the HBA.
Ideal For
The QLogic 7023303 is an excellent choice for:
- IT departments maintaining enterprise SAN infrastructure
- Data-center operators
- Storage administrators
- Enterprise server deployments
- SAN expansion projects
- HBA replacement and maintenance
- Fibre Channel upgrades
- FCoE implementations
- High-availability storage environments
Compatibility Considerations
Before purchasing, verify compatibility with the intended server and storage environment. Check the following:
- Server model and supported HBA list
- Available PCI Express slot
- Operating system and driver support
- Required firmware version
- Fibre Channel switch compatibility
- FCoE infrastructure compatibility
- SFP+ transceiver requirements
- Fibre Channel speed supported by the existing SAN
The required SFP+ transceivers, cables, and accessories may not be included with the HBA and should be confirmed from the specific product configuration.
Product Summary
The QLogic 7023303 Dual-Port 16Gb Fibre Channel / 10Gb FCoE Host Bus Adapter provides a versatile, high-bandwidth connectivity solution for enterprise servers and storage networks. With dual SFP+ ports, 16Gb Fibre Channel capability, 10Gb FCoE support, and a PCI Express x8 host interface, it is well suited for SAN environments, converged data centers, storage expansion, and replacement applications.
Product: QLogic 7023303
Type: Dual-Port Fibre Channel / FCoE Host Bus Adapter
FC Speed: Up to 16Gbps
FCoE Speed: Up to 10Gbps
Ports: 2 × SFP+
Host Interface: PCI Express x8
Application: Enterprise SAN and Storage Networking
Compatibility should be verified against the specific server, SAN, transceiver, firmware, and operating-system requirements before purchase.
